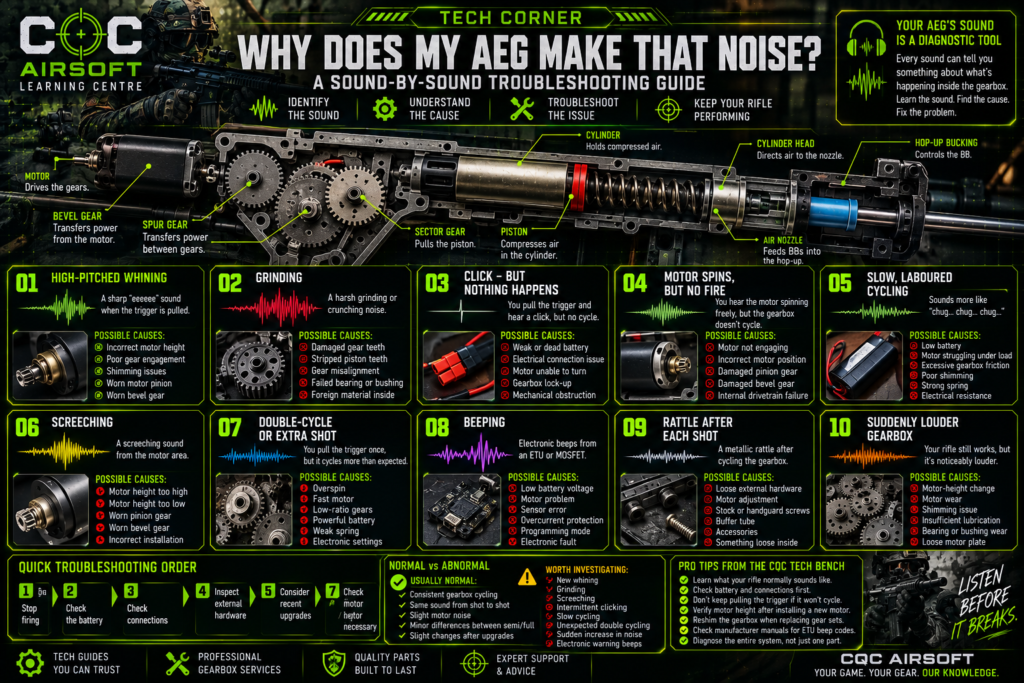

Airsoft Tech Corner: Why Does My AEG Make That Noise? A Sound-by-Sound Troubleshooting Guide

Category: Tech Corner
Reading Time: 11 Minutes

Your AEG Is Making a Weird Noise — Should You Stop Using It?

Airsoft guns make noise. That’s normal.

But when a rifle that normally sounds smooth suddenly starts whining, grinding, clicking, screeching, or struggling to cycle, it’s worth paying attention.

The sound of an AEG can provide valuable clues about what’s happening inside the gearbox.

Some noises are relatively minor.

Others are your rifle telling you:

STOP PULLING THE TRIGGER.

In this CQC Airsoft Tech Corner guide, we’ll break down common AEG noises, what they may indicate, and when it’s time to have your rifle inspected.

01 // HIGH-PITCHED WHINING

What It Sounds Like

A sharp electrical or mechanical “eeeeee” sound whenever the trigger is pulled.

Possible Causes

• Incorrect motor height
• Poor pinion-to-bevel gear engagement
• Gear shimming issues
• Worn motor pinion
• Worn bevel gear

Motor height is one of the first things worth checking when a rifle suddenly develops a high-pitched gearbox sound.

The motor pinion needs to mesh correctly with the bevel gear.

Too much or too little engagement can create excessive noise and wear.

02 // GRINDING

What It Sounds Like

A harsh mechanical grinding or crunching noise.

Possible Causes

• Damaged gear teeth
• Stripped piston teeth
• Incorrect motor height
• Gear misalignment
• Failed bearing or bushing
• Foreign material inside the gearbox

Grinding is not a sound you should ignore.

Continuing to fire the rifle can turn one damaged component into several damaged components.

If your AEG suddenly begins grinding, stop using it until the cause is identified.

03 // CLICK — BUT NOTHING HAPPENS

You pull the trigger and hear:

CLICK.

But the gearbox doesn’t cycle.

Possible causes include:

• Weak or discharged battery
• Motor unable to turn the gearbox
• Gearbox lock-up
• Electrical connection problem
• Motor connection problem
• Mechanical obstruction

Start with the simple things.

Check the battery and connections before assuming the gearbox needs to come apart.

04 // MOTOR SPINS, BUT THE GUN DOESN’T FIRE

Sometimes you’ll hear the motor spinning freely without hearing the normal gearbox cycle.

Possible causes include:

• Motor pinion not engaging the bevel gear
• Motor positioned incorrectly
• Damaged pinion gear
• Damaged bevel gear
• Internal drivetrain failure

The motor may be working perfectly—the power simply isn’t being transferred into the gearbox.

05 // SLOW, LABOURED CYCLING

Instead of the usual crisp:

ZIP — ZIP — ZIP

the rifle sounds more like:

CHUG… CHUG… CHUG…

Possible causes include:

• Low battery
• Motor struggling under load
• Excessive gearbox friction
• Poor shimming
• Strong spring
• Damaged gears
• Electrical resistance

A sluggish gearbox shouldn’t automatically be solved by installing a higher-voltage battery.

Find out why the gearbox is struggling first.

06 // SCREECHING FROM THE MOTOR AREA

A screeching sound near the pistol grip can indicate poor engagement between the motor pinion and bevel gear.

Possible causes include:

• Motor height too high
• Motor height too low
• Worn pinion gear
• Worn bevel gear
• Incorrect motor installation

Improper engagement can quickly damage both gears.

07 // DOUBLE-CYCLE OR EXTRA SHOT SOUND

You pull the trigger once but hear the gearbox cycle more than expected.

This may indicate overspin.

Overspin can be influenced by:

• Fast motor
• Low-ratio gears
• Powerful battery
• Lightweight drivetrain
• Weak spring
• Electronic settings

Modern ETUs and MOSFETs with active braking can sometimes help control gearbox stopping position, depending on the build.

08 // BEEPING

Not every unusual sound is mechanical.

Modern AEGs equipped with an ETU or programmable MOSFET may use beeps to communicate information.

Depending on the system, beeps may indicate:

• Low battery voltage
• Motor problem
• Gearbox cycle problem
• Sensor error
• Overcurrent protection
• Programming mode
• Electronic fault

Different systems use different codes.

Check the manufacturer’s manual before assuming a beep means a specific problem.

09 // RATTLE AFTER EACH SHOT

A metallic rattle can sometimes indicate something has become loose.

Check:

• Motor adjustment
• Pistol grip screws
• Motor plate
• Stock hardware
• Buffer tube
• Handguard
• Flash hider
• Accessories

Not every strange sound comes from inside the gearbox.

External hardware can create noises that sound surprisingly serious.

10 // SUDDENLY LOUDER GEARBOX

Your rifle may still work normally but suddenly sound significantly louder.

Possible causes include:

• Motor-height change
• Gear wear
• Shimming issue
• Loose motor plate
• Insufficient or displaced lubrication
• Bearing or bushing wear

A change in sound is often more important than the absolute volume.

If you’ve owned the rifle for months and suddenly notice that it sounds different, investigate why.

YOUR AEG’S SOUND IS A DIAGNOSTIC TOOL

Technicians don’t only look at what a rifle is doing.

They also listen.

A gearbox’s sound can provide clues about:

Motor → Pinion → Bevel Gear → Spur Gear → Sector Gear → Piston

These components form a mechanical chain.

A problem in one area can change how the entire gearbox sounds.

NORMAL VS ABNORMAL

Usually Normal

✔ Consistent gearbox cycling

✔ Same sound from shot to shot

✔ Slight motor noise

✔ Minor differences between semi and full-auto

✔ Slight changes after installing different components

Worth Investigating

⚠ New whining

⚠ Grinding

⚠ Screeching

⚠ Intermittent clicking

⚠ Slow cycling

⚠ Unexpected double cycling

⚠ Sudden increase in gearbox noise

⚠ Electronic warning beeps

The key word is new.

If your rifle suddenly sounds different, something probably changed.

DID THE SOUND START AFTER AN UPGRADE?

This is one of the most useful troubleshooting questions you can ask.

New Motor?

Check:

• Motor height
• Pinion engagement
• Wiring
• Compatibility

New Gear Set?

Check:

• Shimming
• Bevel engagement
• Gear clearance

New Spring?

Check:

• Motor load
• Gearbox efficiency
• Battery performance

New 11.1V LiPo?

Check:

• Overspin
• Electronics compatibility
• Cycle behaviour

New ETU or MOSFET?

Check:

• Programming
• Error codes
• Motor compatibility
• Cycle detection

Always look at what changed immediately before the problem appeared.

DON’T FIX EVERY NOISE WITH THE MOTOR-HEIGHT SCREW

This is an important one.

The motor-height adjustment screw is not a gearbox volume control.

Randomly turning it until the rifle sounds different can make the gear mesh worse.

Motor height needs to be matched correctly to the bevel gear and gearbox setup.

If you’re unsure, have the drivetrain inspected rather than repeatedly changing the adjustment.

WHEN SHOULD YOU STOP USING THE RIFLE?

Stop firing and inspect the rifle if you hear:

Grinding

Harsh screeching

Repeated clicking without cycling

Sudden major change in gearbox sound

or if the rifle begins behaving abnormally at the same time.

A small repair is usually cheaper than continuing until several components fail.

CQC TECH BENCH // QUICK DIAGNOSTIC ORDER

If your AEG suddenly sounds wrong:

1 // STOP FIRING

↓

2 // CHECK THE BATTERY

↓

3 // CHECK CONNECTIONS

↓

4 // INSPECT EXTERNAL HARDWARE

↓

5 // CONSIDER RECENT UPGRADES

↓

6 // CHECK MOTOR / MOTOR HEIGHT

↓

7 // INSPECT THE GEARBOX IF NECESSARY

Don’t immediately replace parts.

Diagnose first.

PRO TIPS FROM THE CQC AIRSOFT TECH BENCH

✔ Learn what your rifle normally sounds like.

✔ Investigate sudden changes rather than waiting for complete failure.

✔ Don’t repeatedly pull the trigger when the gearbox won’t cycle.

✔ Check your battery before assuming you have a mechanical failure.

✔ After installing a new motor, verify proper motor-to-bevel engagement.

✔ Reshim the gearbox when replacing gear sets.

✔ Check the manufacturer’s documentation when an ETU produces warning codes.

✔ Don’t randomly adjust components hoping the noise disappears.

✔ Diagnose the entire drivetrain as a system.

FINAL THOUGHTS

Your AEG doesn’t need to completely stop working before something is wrong.

Sometimes the earliest warning is simply:

It sounds different.

Learning to recognize abnormal gearbox noises can help catch problems before they become expensive failures.

Whining may point toward motor or gear engagement.

Grinding may indicate damaged drivetrain components.

Clicking can suggest electrical or mechanical resistance.

Beeping may be your ETU actively telling you something is wrong.

The important thing is not to guess.

Listen. Inspect. Diagnose. Then repair.

At CQC Airsoft, our Tech Bench can troubleshoot abnormal gearbox noises, inspect motors and gears, correct shimming and motor alignment, diagnose electronic systems, and identify worn components before they cause additional damage.

Frequently Asked Questions

Why is my airsoft gun making a high-pitched noise?

Motor-height or gear-engagement problems are common possibilities. The motor pinion and bevel gear should be inspected for correct engagement and wear.

Why does my AEG grind when I pull the trigger?

Grinding can indicate damaged gears, piston damage, incorrect motor engagement, or another internal mechanical issue. Stop firing until the cause is identified.

Why does my airsoft gun click but not shoot?

Check the battery and electrical connections first. A gearbox lock-up, motor problem, or internal mechanical issue may also prevent cycling.

Why does my AEG suddenly sound louder?

Changes in motor position, gear wear, shimming, bearings, bushings, or external hardware can change the rifle’s sound.

Why is my MOSFET or ETU beeping?

Electronic systems use different diagnostic codes depending on the manufacturer. Consult the manual for your specific unit before interpreting the warning.

Can bad shimming make an AEG noisy?

Yes. Incorrect gear spacing can increase friction, vibration, and gear noise while accelerating wear.

Should I keep shooting if my gearbox is grinding?

No. Stop using the rifle and have the cause diagnosed before continuing.

CQC TECH BENCH // LISTEN BEFORE IT BREAKS.

Your rifle will often warn you before a component completely fails. Learn the sound. Find the cause. Fix the problem.
