Airsoft Tech Corner: Compression Explained – The Hidden Key to Consistent FPS & Better Performance

Category: Tech Corner
Reading Time: 10 Minutes

Your Spring Isn’t the Only Thing Controlling FPS

When an AEG starts losing power, one of the first reactions is often:

“I need a stronger spring.”

But that isn’t always the problem.

Your rifle can have a perfectly good spring and still suffer from low or inconsistent FPS because air is escaping somewhere inside the compression system.

This is where air seal and compression become extremely important.

A properly sealed AEG can deliver more consistent velocity, better efficiency, and more predictable performance without simply installing a stronger spring.

Let’s break down how the AEG compression system works and where problems commonly occur.

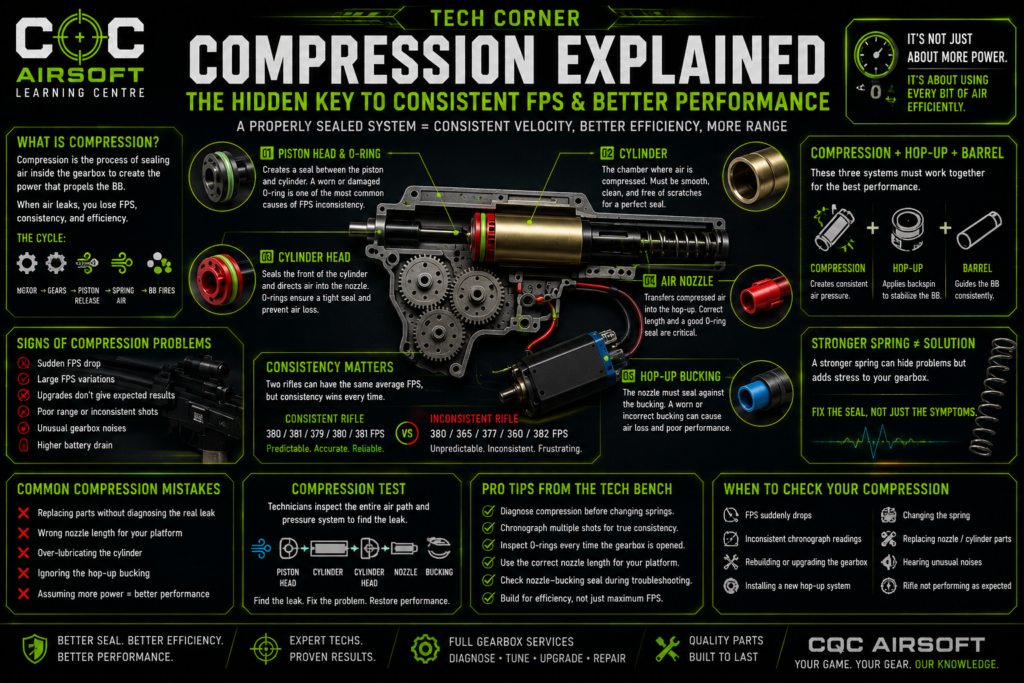

What Is Compression in an AEG?

Inside an electric airsoft gun, the gearbox creates a burst of compressed air that propels the BB through the barrel.

The basic process works like this:

Motor → Gears → Piston → Spring Release → Compressed Air → Nozzle → BB

When the sector gear releases the piston, the spring pushes the piston rapidly forward.

The piston compresses air inside the cylinder.

That compressed air travels through the:

• Cylinder
• Cylinder head
• Air nozzle
• Hop-up bucking
• Inner barrel

If everything seals correctly, most of that compressed air is used to propel the BB.

If something leaks, performance can suffer.

The Main Components of the Compression System

01 // PISTON HEAD & O-RING

The piston head sits at the front of the piston and uses an O-ring to create a seal against the inside of the cylinder.

This is one of the most important seals in the entire gearbox.

A damaged, undersized, dry, or worn O-ring can allow air to escape around the piston.

Possible symptoms include:

• Low FPS
• Large FPS variations
• Poor efficiency
• Inconsistent performance

Sometimes replacing a small O-ring can make a surprisingly large difference.

02 // CYLINDER

The cylinder provides the chamber where air is compressed.

Its internal surface should be:

• Smooth
• Clean
• Undamaged
• Properly matched to the build

Scratches, contamination, or poor component fit can affect the piston-head seal.

Cylinder volume also needs to be considered when matching the gearbox to the inner barrel.

03 // CYLINDER HEAD

The cylinder head seals the front of the cylinder and directs compressed air toward the nozzle.

Poor sealing between the cylinder and cylinder head can allow valuable air pressure to escape.

Quality cylinder heads commonly use O-rings to help create a dependable seal.

04 // AIR NOZZLE

The air nozzle is a small component with a very important job.

It transfers compressed air from the cylinder head into the hop-up chamber while also moving during the feeding cycle.

Problems can occur when the nozzle is:

• Incorrect length
• Damaged
• Poorly sealed
• Improperly aligned

Many upgraded nozzles include an internal O-ring designed to improve the seal around the cylinder-head nozzle.

However, nozzle length and compatibility are critical.

A better-sealing nozzle is useless if it doesn’t fit the platform correctly.

05 // HOP-UP BUCKING

The compression system doesn’t stop at the gearbox.

The nozzle must create a proper seal against the hop-up bucking.

A worn, damaged, incorrectly installed, or incompatible bucking can cause air loss.

This can lead to:

• FPS fluctuations
• Poor accuracy
• Feeding problems
• Reduced effective range

The gearbox and hop-up need to work together as one complete system.

Why Consistent FPS Matters

Players often focus on maximum FPS.

But consistency is usually more important.

Imagine one rifle producing:

380 / 381 / 379 / 380 / 381 FPS

and another producing:

380 / 365 / 377 / 360 / 382 FPS

Both rifles may technically reach 380 FPS, but the first rifle has a much more consistent system.

Consistent velocity helps produce more predictable BB flight and makes tuning the hop-up easier.

Signs Your AEG May Have a Compression Problem

Compression issues can show up in several ways.

Watch for:

Sudden FPS Drop

If your rifle previously performed normally and suddenly loses velocity, inspect the compression components.

Large Chronograph Variations

Significant shot-to-shot variation can indicate an inconsistent seal.

Upgrades Don’t Produce Expected Results

Installed a stronger spring but barely gained any FPS?

An air leak could be wasting some of that additional energy.

Poor Range or Inconsistent Shots

Hop-up problems aren’t always responsible.

Inconsistent air delivery can also affect shot-to-shot performance.

The Compression Test

During professional gearbox servicing, technicians can inspect the piston, cylinder, cylinder head, and nozzle system for proper sealing.

The goal is to determine whether the compression assembly can build and maintain pressure effectively.

A poor seal can point technicians toward components such as:

• Piston O-ring
• Piston head
• Cylinder
• Cylinder head
• Nozzle

Finding the actual leak is much better than randomly replacing parts.

Stronger Spring vs Better Compression

This is where many builds go wrong.

If a rifle has poor compression, installing a stronger spring may compensate for some lost performance—but it doesn’t actually repair the underlying problem.

A stronger spring can also increase stress on:

• Gears
• Piston
• Motor
• Bushings or bearings
• Gearbox shell

Before increasing spring strength, make sure the existing compression system is functioning correctly.

Better Air Seal Can Improve Efficiency

A well-sealed system uses the energy from the spring more effectively.

That means you may be able to achieve the desired performance without unnecessarily increasing mechanical stress.

A properly tuned AEG is about efficiency, not simply installing stronger parts.

Common Compression Upgrade Mistakes

Replacing Everything at Once

More aftermarket parts don’t automatically create better compression.

Component compatibility matters.

Installing the Wrong Nozzle Length

Even a tiny dimensional difference can affect feeding and air seal.

Always verify compatibility with your specific platform.

Over-Lubricating the Cylinder

More lubricant isn’t better.

Excess lubricant can migrate into other components and attract contamination.

Use the correct lubricant in the correct amount.

Ignoring the Hop-Up Bucking

You can have excellent gearbox compression and still lose efficiency where the nozzle meets the bucking.

Always evaluate the complete air path.

Compression + Hop-Up + Barrel = Complete System

For a consistently performing airsoft rifle, three major areas need to work together:

Compression

Creates consistent air pressure.

Hop-Up

Applies controlled backspin to stabilize the BB.

Inner Barrel

Guides the BB consistently out of the rifle.

Improving only one area while ignoring the others can limit your results.

Pro Tips from the CQC Airsoft Tech Bench

• Diagnose compression before installing a stronger spring.
• Chronograph multiple shots—not just one—to evaluate consistency.
• Inspect O-rings whenever the gearbox is opened for major servicing.
• Make sure replacement nozzles are the correct length for your platform.
• Check the bucking and nozzle seal when troubleshooting unexplained FPS loss.
• Build for consistency and efficiency rather than chasing the highest possible FPS.

When Should You Have Your Compression Checked?

A compression inspection is worth considering when:

• Your FPS suddenly drops
• Chronograph readings become inconsistent
• You’re rebuilding the gearbox
• You’re replacing the piston or cylinder components
• You’re installing a new hop-up system
• You’re changing the spring
• Your rifle isn’t performing as expected

Testing first can prevent unnecessary upgrades and save money.

Final Thoughts

Compression is one of the most overlooked areas of AEG performance.

Players often spend money on motors, gears, batteries, springs, and barrels while ignoring the seals responsible for actually transferring energy to the BB.

A properly sealed compression system can deliver:

✔ More consistent FPS

✔ Better efficiency

✔ More predictable performance

✔ Reduced need for unnecessarily heavy springs

✔ A better foundation for future upgrades

The goal isn’t simply to make an AEG more powerful.

The goal is to make every component work together efficiently.

At CQC Airsoft, our Tech Bench can diagnose compression problems, inspect gearbox components, replace worn seals, tune hop-up systems, and help build reliable performance packages matched to your rifle.

Frequently Asked Questions

What causes low FPS in an airsoft AEG?

Low FPS can have several causes, including a worn spring, poor piston O-ring seal, leaking cylinder head, incorrect nozzle, damaged bucking, or other compression problems.

Can a bad O-ring cause inconsistent FPS?

Yes. If the piston-head O-ring doesn’t seal consistently against the cylinder, shot-to-shot velocity can fluctuate.

Should I install a stronger spring if my FPS is low?

Not immediately. The compression system should be checked first. Installing a stronger spring can hide an air leak while adding unnecessary stress to the gearbox.

Does an O-ring air nozzle improve compression?

It can help improve the seal between the nozzle and cylinder-head tube, but correct nozzle length, alignment, and compatibility remain extremely important.

Can a hop-up bucking cause an air leak?

Yes. The nozzle needs to seal correctly against the bucking. Damage, incorrect installation, or incompatible components can reduce the quality of that seal.

Does better compression improve accuracy?

Compression primarily improves velocity consistency and efficiency. More consistent air delivery can contribute to more predictable shots, but accuracy also depends heavily on the hop-up, barrel, BB quality, and overall setup.

How do I know whether my FPS is consistent?

Chronograph several consecutive shots using the same BB weight. You’re looking for a tight spread between readings rather than judging the rifle from a single shot.
