ARCTURUS RS

CNC STEEL 13:1 AEG GEAR SET // V2 / V3 GEARBOXES

13:1 RATIO • CNC-MACHINED STEEL • HEAT-TREATED • DELAY CHIP INCLUDED • V2/V3 COMPATIBILITY • PERFORMANCE DRIVETRAIN

ARCTURUS 13:1 GEARS // CNC STEEL AEG GEAR SET // VERSION 2 GEARBOX GEARS // VERSION 3 GEARBOX GEARS // HIGH-SPEED AEG GEARS // ARCTURUS RS GEAR SET

13:1 // CHANGE THE DRIVETRAIN.

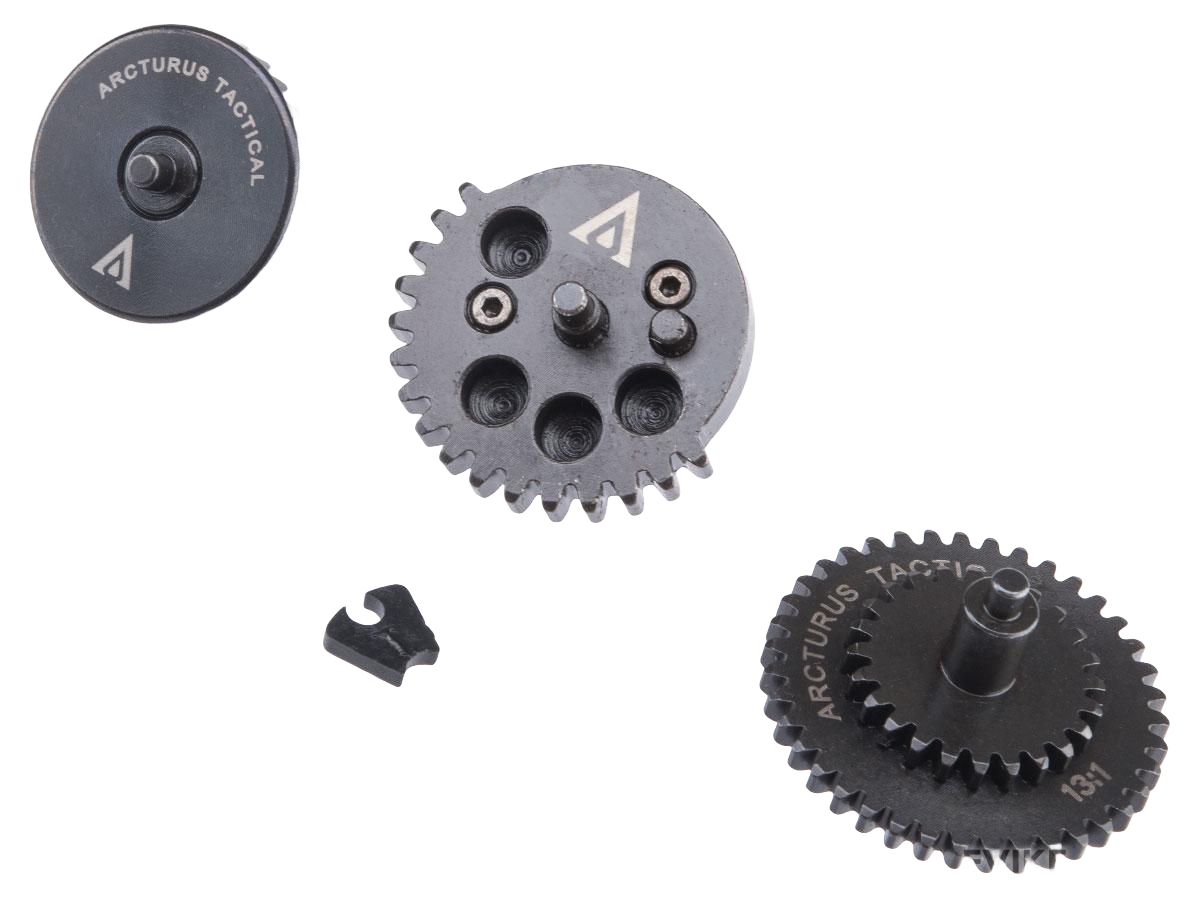

The Arcturus RS CNC Steel Gear Set with Delay Chip for Version 2/3 Airsoft AEG Gearboxes – 13:1 is a performance-oriented drivetrain component designed for compatible AEG builds where mechanical efficiency, response and durable gear construction matter.

At the centre of the package is a:

13:1 GEAR RATIO.

Compared with more conventional AEG gear ratios, 13:1 gears are commonly selected for builds focused on a quicker drivetrain cycle and improved response when combined with an appropriately matched motor, battery, spring and electrical system.

Arcturus builds that performance-oriented ratio into a gear set manufactured from:

PRECISION CNC-MACHINED STEEL.

Then adds a:

DELAY CHIP

to support more consistent feeding within properly configured builds.

CNC STEEL

PRECISION AT THE GEAR TRAIN.

An AEG gearbox repeatedly transfers rotational force through its gear train, making gear construction a critical part of the drivetrain.

Arcturus uses:

HIGH-STRENGTH CNC-MACHINED STEEL

for the RS gear set.

CNC machining allows the gear geometry to be produced with controlled dimensions while the steel construction provides the robust material foundation expected from a performance gearbox component.

The result is a gear set intended for builders looking beyond basic factory-style gears and toward a more refined internal drivetrain.

13:1

PERFORMANCE-ORIENTED RATIO.

Gear ratio affects how the motor’s rotation is translated through the AEG gearbox.

This Arcturus set uses a:

13:1 RATIO.

In a properly matched AEG configuration, this lower-ratio gear set can contribute to a faster drivetrain cycle compared with many traditional higher-ratio arrangements.

That can support:

IMPROVED TRIGGER RESPONSE

and:

INCREASED CYCLING SPEED.

However, gears do not determine performance by themselves.

Final results depend on the motor, battery, spring, piston assembly, electrical system, gearbox setup and other components working together correctly.

There is no universal rate-of-fire increase that can be guaranteed simply by installing 13:1 gears.

HEAT-TREATED

HARDNESS WHERE IT COUNTS.

Arcturus doesn’t stop at machining the gear set.

The steel components are:

HEAT-TREATED

to improve surface hardness.

Surface hardness is especially important on gear teeth and other contact areas subjected to repeated mechanical loading during operation.

The treatment is also intended to provide:

IMPROVED CORROSION RESISTANCE.

That combination of CNC-machined steel and additional material treatment makes the RS gear set a purpose-built upgrade rather than simply a different gear ratio.

DELAY CHIP

FEEDING IS PART OF PERFORMANCE.

Included with the gear set is a:

DELAY CHIP.

The delay chip is intended to support improved feeding by influencing the timing of the tappet-plate/nozzle cycle in compatible AEG configurations.

Why does that matter?

Increasing drivetrain cycling speed can place greater demands on the feeding system.

A build that cycles faster still needs sufficient time for BBs to feed correctly into the hop-up chamber.

The included delay chip is intended to help support that feeding window and reduce the potential for BB chopping in a properly configured system.

It should still be treated as one component of the complete gearbox setup—not a universal cure for every feeding issue.

V2 + V3

BUILT FOR COMMON AEG GEARBOX ARCHITECTURES.

The Arcturus RS gear set is designed for compatible:

VERSION 2 + VERSION 3 AEG GEARBOXES.

These gearbox families are used across a broad range of electric airsoft platforms.

However, “V2/V3 compatible” does not mean guaranteed drop-in compatibility with every gearbox shell, motor, piston, bearing/bushing arrangement or aftermarket internal combination.

Manufacturing tolerances and internal configurations can differ.

Fitment should always be verified against the exact gearbox being used.

COMPLETE SYSTEM

GEARS DON’T WORK ALONE.

The best AEG drivetrain is a balanced drivetrain.

The performance of a 13:1 gear set depends on how well it works with the rest of the system.

That includes the:

MOTOR

SPRING

PISTON

BEARINGS OR BUSHINGS

BATTERY

ELECTRICAL SYSTEM

TAPPET SYSTEM

and:

GEARBOX SHELL.

Changing one component can change the mechanical demands placed on another.

For this reason, installation by an experienced airsoft technician is recommended when building or modifying a performance gearbox.

ARCTURUS RS // DRIVETRAIN ARCHITECTURE

Brand: Arcturus

Series: RS

Product: CNC Steel AEG Gear Set

Gear Ratio: 13:1

Material: High-Strength Steel

Manufacturing: Precision CNC Machined

Treatment: Heat-Treated

Design Focus: Response / Cycling Efficiency / Durability

Included Component: Delay Chip

Gearbox Compatibility: Compatible Version 2 / Version 3 AEG Gearboxes

Feed Support: Delay Chip Designed to Improve Feeding Timing

TECHNICAL NOTE

A PERFORMANCE GEAR SET NEEDS A BALANCED BUILD.

Installing lower-ratio gears changes the behaviour of the AEG drivetrain.

The motor, electrical system, battery, spring and mechanical components must all be appropriate for the intended configuration.

Improper component matching or installation can cause poor feeding, excessive wear or gearbox reliability issues.

The included delay chip can support feeding timing, but it does not replace proper gearbox setup and component compatibility.

ARCTURUS RS

13:1 CNC STEEL GEAR SET.

The Arcturus RS CNC Steel Gear Set with Delay Chip for Version 2/3 Airsoft AEG Gearboxes – 13:1 brings together the core characteristics expected from a performance-oriented AEG drivetrain upgrade:

PRECISION. // STEEL. // SPEED. // FEEDING SUPPORT.

Its 13:1 ratio is designed around quicker drivetrain cycling and improved response, while high-strength CNC-machined steel construction and heat treatment provide the durable foundation needed for repeated gearbox operation.

Add the included delay chip for feeding support, and the result is a well-rounded gear package for compatible V2 and V3 AEG gearbox builds.

For customers searching for Arcturus 13:1 gears, Arcturus RS gear set, CNC steel airsoft gears, 13:1 AEG gear set, Version 2 gearbox gears, Version 3 gearbox gears, high-speed AEG gears, Arcturus airsoft upgrade parts Canada, or 13:1 airsoft gears Canada, the RS series offers a precision-machined drivetrain option built for properly configured performance AEGs.

ARCTURUS // RS

13:1 // CNC STEEL // HEAT-TREATED // DELAY CHIP

PRECISION IN THE GEAR TRAIN. // PERFORMANCE STARTS INSIDE THE GEARBOX.
