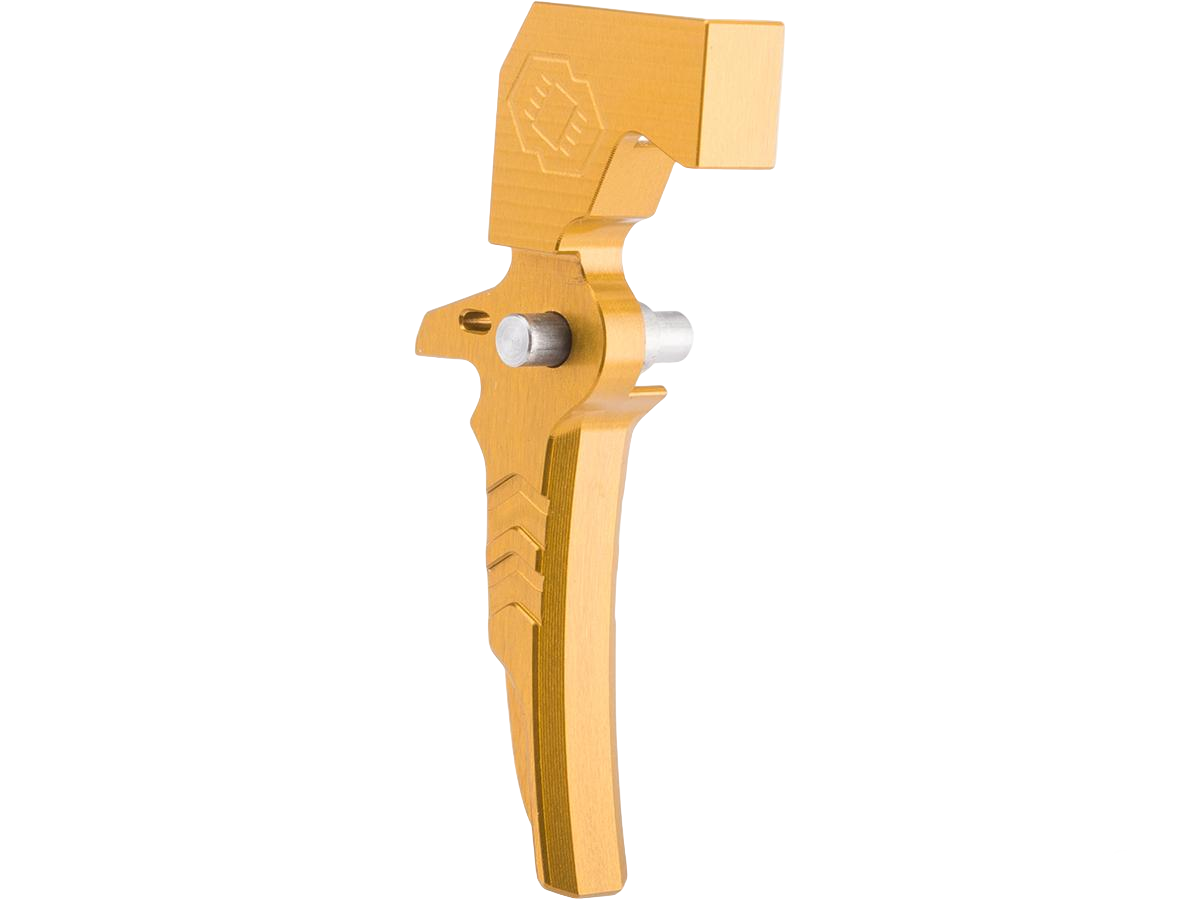

GATE QUANTUM TRIGGER FOR ASTER V2 ETU – CURVED / YELLOW

470 Sensitivity Levels • 60 Levels Within First 1mm • CNC Aluminum • Optical Detection • ASTER V2 Compatible

EXTREME TRIGGER RESOLUTION // 470 SENSITIVITY LEVELS // CNC ALUMINUM // PURPOSE-BUILT FOR ASTER V2

Take trigger customization beyond the traditional hair-trigger setup with the GATE Quantum Trigger for GATE ASTER V2 ETU – Curved Trigger / Yellow.

Designed specifically to work with the optical sensors of the GATE ASTER V2, the Quantum Trigger introduces an exceptionally precise trigger-detection system with up to 470 possible sensitivity levels across the complete trigger movement and an incredible 60 sensitivity positions within the first 1mm / 0.04″ of travel.

Precision CNC-machined from aluminum and engineered with a specialized reflective surface, the Quantum Trigger is intended for experienced airsoft technicians and advanced players who want extremely fine control over how their ASTER-equipped AEG responds to trigger movement.

This isn’t simply a cosmetic trigger replacement. It’s a performance component engineered as part of the GATE optical ETU ecosystem.

01 // 60 SENSITIVITY LEVELS IN THE FIRST 1mm

The headline feature of the GATE Quantum Trigger is its extraordinary level of adjustment.

When paired with a properly configured ASTER V2, the system provides up to 60 trigger sensitivity positions within the first 1mm / 0.04 inches of trigger movement.

This gives advanced users extremely fine control over the initial activation point.

Instead of being limited to a few broad sensitivity settings, the Quantum Trigger allows the ASTER system to recognize very small changes in trigger position.

You can configure the system around an extremely short response or select a longer, more deliberate movement according to your preference and field requirements.

02 // 470 POSSIBLE SENSITIVITY LEVELS

The adjustment doesn’t end with the first millimetre.

Across the trigger’s complete movement, the Quantum Trigger and compatible ASTER V2 system provide up to 470 possible sensitivity levels.

That amount of resolution gives users enormous flexibility when configuring trigger behaviour.

GATE describes the adjustment range as moving from an extremely sensitive “touch” style, through a conventional “hair” trigger, and onward toward full trigger movement.

For advanced AEG builds where precise electronic trigger configuration is a priority, this provides a level of customization well beyond a basic mechanical trigger.

03 // PURPOSE-BUILT FOR ASTER V2 OPTICAL SENSORS

The Quantum Trigger isn’t designed as a generic trigger that simply happens to fit an ASTER-equipped gearbox.

It is specifically engineered around the optical sensors used by GATE ASTER V2 systems.

The trigger’s geometry and surface characteristics are optimized to interact with the ASTER’s optical detection technology.

That purpose-built relationship between the physical trigger and electronic trigger unit is what allows the system to achieve such high detection resolution.

For players already running ASTER V2, the Quantum Trigger provides a way to take greater advantage of the ETU’s optical capabilities.

04 // REFLECTIVE TRIGGER DETECTION

Traditional optical trigger detection can work by monitoring when a component blocks or interrupts light.

The Quantum Trigger takes a different approach.

Rather than simply covering the sensor, the trigger is designed to precisely reflect light back toward the ASTER V2 optical system.

Its specialized shape and surface work together with the sensor to provide highly detailed trigger-position detection.

This reflective approach is a major part of what separates the Quantum Trigger from a conventional aftermarket AEG trigger.

It’s not just the physical shape of the trigger that matters—the optical interaction is part of the design.

05 // PRECISION CNC ALUMINUM CONSTRUCTION

The Quantum Trigger is manufactured from precision CNC-machined aluminum.

CNC manufacturing allows the component to maintain the carefully designed geometry required for proper interaction with the ASTER optical system while providing the premium metal construction expected from a high-end AEG upgrade.

The aluminum body provides a solid mechanical feel without introducing excessive weight.

This version features a curved trigger profile combined with a distinctive yellow finish, giving your build an immediately recognizable custom appearance.

06 // CURVED TRIGGER PROFILE

Not every player wants a flat competition-style trigger.

This version retains a curved trigger profile, providing a more traditional contact surface while still delivering the advanced optical functionality of the Quantum system.

For players who prefer the familiar feel of a curved trigger but want the extreme sensitivity adjustment available through ASTER V2, this configuration provides an excellent middle ground.

The bright yellow finish also makes it a standout visual upgrade on custom AEG builds.

07 // DESIGNED FOR ADVANCED USERS

GATE positions the Quantum Trigger particularly toward professional, skilled, and experienced users.

There’s a reason for that.

With hundreds of possible sensitivity positions, the goal isn’t simply to install the trigger and forget about it. The Quantum system provides a deep level of configuration that rewards careful setup and understanding of the ASTER ecosystem.

For experienced users building highly customized V2 AEG platforms, that adjustability is exactly the point.

WHY CHOOSE THE GATE QUANTUM TRIGGER?

✓ 470 SENSITIVITY LEVELS

Extremely detailed adjustment throughout the complete trigger movement.

✓ 60 LEVELS IN THE FIRST 1mm

Ultra-high resolution where extremely short trigger activation matters most.

✓ ASTER V2 OPTIMIZED

Purpose-built to work with compatible GATE ASTER V2 optical sensors.

✓ REFLECTIVE DETECTION TECHNOLOGY

Specialized surface and geometry interact with the ASTER optical system.

✓ CNC ALUMINUM

Precision-machined construction provides premium fit and feel.

✓ CURVED PROFILE

Traditional curved trigger ergonomics with advanced electronic detection.

✓ DISTINCTIVE YELLOW FINISH

Adds a premium custom appearance to compatible AEG builds.

✓ ADVANCED CONFIGURATION

Designed for experienced players and technicians who want extensive control over trigger response.

SOFTWARE & FIRMWARE NOTICE

The Quantum Trigger requires compatible GATE software and firmware.

According to the listed requirements, use at least:

GCS 3.0 beta 5 – Windows / macOS
GCS v1.5.6 – Android
ASTER Firmware 3.1-03 or later

Software and firmware requirements can change as GATE updates its ecosystem, so checking the current GATE documentation before installation is recommended.

INSTALLATION NOTICE // PRECISION MATTERS

Aftermarket AEG components can have fitment differences depending on gearbox shell, receiver, ASTER installation, and other internal components.

Some fitting or adjustment may be necessary.

Because the Quantum Trigger relies on precise interaction with the ASTER V2 optical sensors, correct positioning and calibration are especially important. If you’re unfamiliar with electronic trigger units or gearbox servicing, professional installation is recommended.

FINAL WORD // TAKE ASTER V2 TRIGGER CONTROL TO THE NEXT LEVEL

The GATE Quantum Trigger for ASTER V2 ETU – Curved / Yellow isn’t simply another aluminum trigger.

It’s a precision optical component designed to unlock an entirely different level of trigger customization from the ASTER V2 platform.

With 60 sensitivity positions within the first 1mm, up to 470 sensitivity levels across the complete movement, specialized reflective optical detection, precision CNC aluminum construction, curved ergonomics, and dedicated ASTER V2 integration, the Quantum Trigger gives advanced users exceptional control over their AEG’s trigger response.

When an ordinary hair trigger no longer offers enough adjustment, Quantum is the next step.

GATE QUANTUM // 470 LEVELS // CNC ALUMINUM // ASTER V2 PRECISION
