SILVERBACK AIRSOFT VARIABLE MASS PISTON FOR SRS SERIES AIRSOFT SNIPER RIFLES

Adjustable 40–137g Piston Mass • CNC Aluminum Construction • Steel Piston End • Silent Piston Head • SRS Pull-Bolt Performance Tuning

VARIABLE MASS SYSTEM // 15 WEIGHT CONFIGURATIONS // CNC ALUMINUM // SILENT PISTON HEAD // SILVERBACK SRS TUNING

Fine-tune the performance characteristics of your Silverback sniper platform with the Silverback Airsoft Variable Mass Piston for Pull-Bolt SRS Series Airsoft Sniper Rifles, a precision internal upgrade designed to give experienced players and technicians greater control over piston mass and muzzle-energy characteristics.

Unlike a conventional fixed-weight piston, the Silverback Variable Mass Piston uses interchangeable aluminum and steel flyweights to provide 15 different mass configurations ranging from approximately 40 to 137 grams. This allows the piston assembly to be configured around your rifle, spring setup, BB weight, and desired performance characteristics.

Manufactured with CNC-machined 6061-T6 aluminum components, a CNC steel piston end, NBR piston cup, and interchangeable flyweights, this is a purpose-built Silverback component for players who want more control over the setup of a compatible SRS spring-powered sniper rifle.

01 // VARIABLE MASS PISTON TECHNOLOGY

The defining feature of this Silverback SRS piston is its Variable Mass System.

Rather than locking the rifle into a single piston weight, Silverback allows the mass of the piston assembly to be changed using the supplied flyweights.

The piston can be configured from approximately:

40 grams → 137 grams

with 15 different available configurations.

This gives advanced SRS builders another tuning variable when configuring the rifle around different BB weights and overall setups.

Instead of treating piston weight as a fixed specification, the Variable Mass Piston turns it into an adjustable part of the rifle’s performance system.

02 // MATCH YOUR SETUP TO YOUR SNIPER BBS

Airsoft sniper rifles are often configured around heavier BB weights, making consistency and proper system tuning particularly important.

The Silverback Variable Mass Piston allows experienced users to experiment with piston mass as part of that overall setup.

By changing the installed flyweights, the piston assembly can be configured to better match the desired characteristics of the rifle and the BBs being used.

This makes the system especially appealing to SRS owners who enjoy precision tuning rather than relying entirely on a factory-standard internal configuration.

As with any performance adjustment, final muzzle energy should always be verified with a chronograph.

03 // CNC 6061-T6 ALUMINUM CONSTRUCTION

Silverback uses CNC-machined 6061-T6 aluminum for both the piston head and main piston body.

This provides a combination of strength, precision, and relatively low base weight.

The lightweight aluminum foundation is especially important for a variable-mass design because it gives the user a broader range of adjustment through the interchangeable weights.

Instead of beginning with an unnecessarily heavy piston and having limited room for adjustment, the system uses its lightweight aluminum architecture as the foundation for the complete 40–137g tuning range.

04 // CNC STEEL PISTON END

The assembly also incorporates a CNC-machined steel piston end.

Using steel at this critical area provides additional durability where a stronger material is beneficial, while aluminum is retained throughout other portions of the assembly to manage weight.

This mixed-material approach allows Silverback to balance strength, precision, and adjustable mass rather than manufacturing the entire piston from one material.

It’s a purpose-built construction strategy for a highly tunable sniper platform.

05 // ALUMINUM & STEEL FLYWEIGHTS

The package includes two different types of adjustable piston weights:

4× CNC aluminum flyweights
4× CNC steel flyweights

The different material densities allow multiple piston-weight combinations to be created.

By selecting and combining the appropriate flyweights, the user can adjust total piston mass through 15 configurations.

This modular design is what gives the Variable Mass Piston its extensive tuning range without requiring multiple complete piston assemblies.

06 // RUBBER SILENT PISTON HEAD

The piston incorporates an NBR rubber piston cup / silent piston head design.

The rubber component provides the sealing surface required by the compression system while also helping soften the mechanical impact characteristics of the piston cycle.

A “silent” piston does not make a spring-powered sniper rifle completely silent.

Other mechanical components will still produce sound.

Instead, the design is intended to help reduce or soften part of the piston impact, making it particularly relevant for players building a refined bolt-action sniper platform.

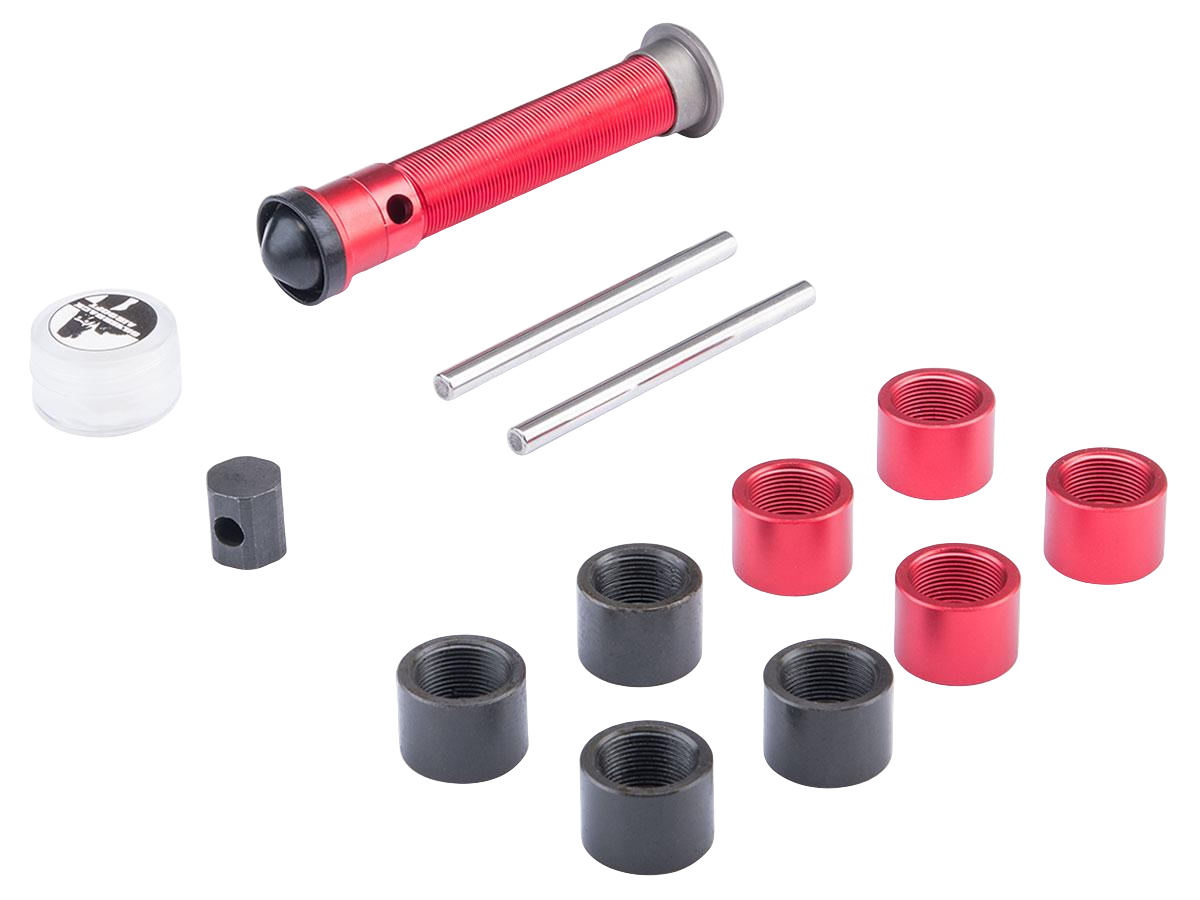

07 // COMPLETE TUNING PACKAGE

Silverback supplies more than just the piston.

The package includes:

NBR piston cup
CNC 6061-T6 aluminum piston head
CNC 6061-T6 aluminum piston body
CNC steel piston end
4 CNC aluminum flyweights
4 CNC steel flyweights
PTFE grease
Adjustment / installation tools

This gives the user the primary components required to install, configure, and maintain the variable-mass system.

WHY CHOOSE THE SILVERBACK VARIABLE MASS PISTON?

✓ 40–137G ADJUSTMENT RANGE

Configure piston mass across a broad performance-tuning window.

✓ 15 DIFFERENT CONFIGURATIONS

Multiple flyweight combinations provide extensive adjustment options.

✓ CNC 6061-T6 ALUMINUM

Precision-machined piston body and head construction.

✓ CNC STEEL PISTON END

Reinforced steel construction at a critical mechanical area.

✓ ALUMINUM & STEEL FLYWEIGHTS

Different materials allow greater control over total piston mass.

✓ SILENT PISTON DESIGN

NBR rubber piston cup helps soften mechanical impact.

✓ COMPLETE PACKAGE

Includes flyweights, grease, and tools for configuration and maintenance.

IMPORTANT // VERIFY YOUR SRS BOLT SYSTEM BEFORE ORDERING

The supplied product information contains conflicting compatibility wording, referencing both “Pull Bolt” and “push bolt system.”

Because Silverback SRS platforms have been produced in different configurations and generations, confirm the exact bolt system used by your specific SRS before purchasing or installing this piston.

Do not assume compatibility based solely on the rifle being an SRS.

TECH NOTE // TUNE, TEST & CHRONOGRAPH

The Variable Mass Piston provides another tuning option—it does not replace proper overall rifle setup.

Spring configuration, air volume, barrel, hop-up, BB weight, air seal, piston mass, and other components all contribute to final performance.

After changing the piston weight or any component that can affect muzzle energy, chronograph the rifle and verify that it remains within the applicable limits of your airsoft field.

FINAL WORD // PRECISION TUNING FOR THE SILVERBACK SRS PLATFORM

The Silverback Airsoft Variable Mass Piston for SRS Series Airsoft Sniper Rifles takes piston tuning beyond the traditional fixed-weight design.

With an adjustable 40–137g mass range, 15 configurations, CNC 6061-T6 aluminum construction, steel piston end, NBR silent piston cup, and a complete set of aluminum and steel flyweights, it gives experienced SRS owners significantly greater control over their internal setup.

For players building a carefully tuned Silverback sniper rifle around heavyweight BBs and consistent performance, this is a purpose-designed upgrade that makes piston mass another adjustable part of the system.

SILVERBACK SRS // 40–137G VARIABLE MASS // 15 CONFIGURATIONS // PRECISION SNIPER TUNING
