Airsoft Tech Corner: MOSFET vs ETU – What’s the Difference and Do You Need One?

A MOSFET switches motor current. An Electronic Trigger Unit (ETU) adds electronic trigger control. Airsoft product names often overlap, so compare the exact unit’s features rather than relying on the label alone.

This guide explains the difference and what to check before choosing electronics for your AEG.

What Is a MOSFET?

MOSFET stands for Metal-Oxide-Semiconductor Field-Effect Transistor. In an AEG control circuit, it acts as an electronic switch between the battery and motor.

In a correctly wired trigger-contact protection setup, the mechanical contacts carry a low-current signal while the MOSFET switches the motor’s heavier current. This reduces electrical arcing at the trigger contacts.

What Does a Basic MOSFET Offer?

• Electronic switching of motor current
• Reduced wear at mechanical trigger contacts when wired for that purpose
• A potentially more efficient electrical path, depending on the circuit and wiring

A basic MOSFET does not automatically include programming, battery protection or cycle detection. Installation and signal wiring matter; a plug-in accessory should not be assumed to bypass the trigger contacts.

What Is an ETU?

An Electronic Trigger Unit detects trigger input and controls firing electronically. Many gearbox-mounted ETUs replace the original trigger-contact assembly and use sensors to monitor the trigger, selector or gearbox cycle.

Depending on the model, firmware and configuration, features may include:

• Adjustable trigger activation sensitivity
• Programmable firing modes
• Active braking
• Pre-cocking
• Cycle detection
• Battery monitoring
• Diagnostic alerts

Not every ETU includes every feature. Check the exact version and any required programming accessories before ordering.

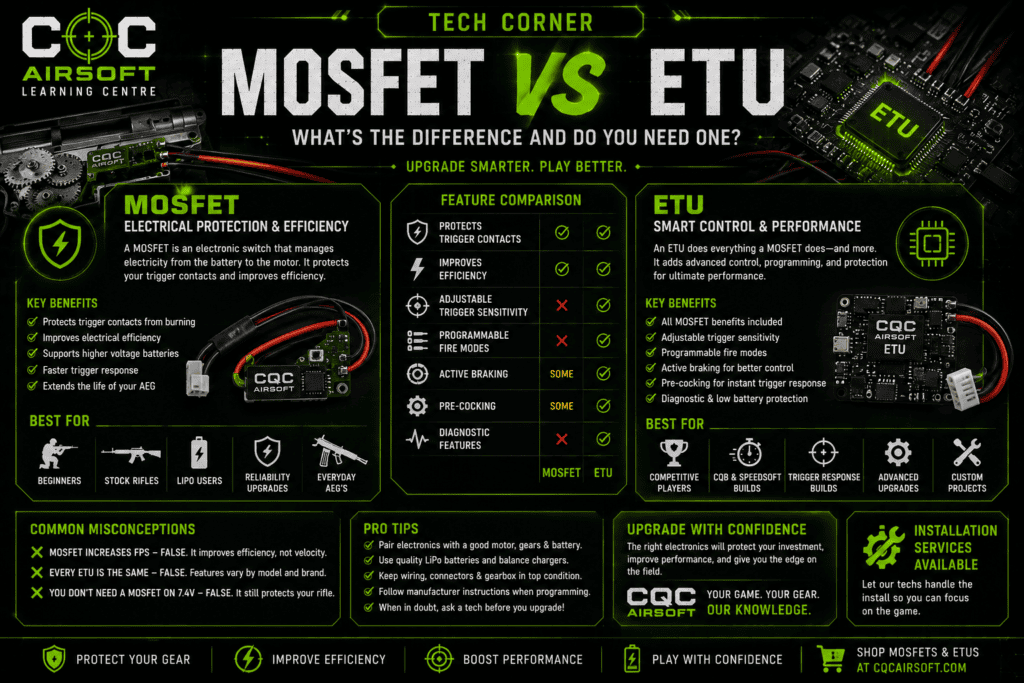

MOSFET vs ETU: Compare the Actual Features

The terms are not strict, mutually exclusive product categories. An ETU normally uses MOSFET switching, and some products sold as programmable MOSFETs provide advanced control features.

• Basic MOSFET: Focuses on switching motor current.
• Programmable MOSFET: May add braking, burst modes, pre-cocking or battery monitoring.
• ETU: Adds electronic trigger control, often with gearbox or selector sensing.

Choose based on compatibility, installation needs and the functions you will use.

What Can Better Electronics Change?

Trigger-Contact Wear

A properly installed MOSFET circuit can reduce arcing at mechanical trigger contacts. An ETU that replaces those contacts uses its own trigger-detection system.

Trigger Response

Response depends on the motor, battery, gearing, spring load, wiring and control settings. Electronics can help, but they do not repair worn mechanical parts.

Trigger Sensitivity

Some ETUs allow you to adjust the point at which trigger movement registers. This is different from physically shortening trigger travel, which may require a compatible adjustable trigger.

Active Braking

Active braking helps stop the motor after a firing cycle. The correct setting depends on the build. Follow the unit manufacturer’s guidance, including any restrictions for brushless motors.

Pre-Cocking

Pre-cocking holds the piston in a partially or more fully retracted position between shots, depending on the system. This can reduce the delay before the next shot.

Use settings suited to the gearbox and follow the manufacturer’s spring-release procedure after play.

Programmable Firing Modes

Supported systems may offer burst or other firing modes. Configure them for the rules of the field or event where you play.

Does a MOSFET Make an 11.1V LiPo Compatible?

Not by itself. Confirm that the complete rifle, electronics and motor are suitable for the selected battery. A component’s voltage rating is not approval for every gearbox configuration.

Check the rifle and electronics manuals for supported battery chemistry, voltage and setup requirements.

Which Upgrade Should You Choose?

Choose Simpler Electronics for Straightforward Switching

If your goal is to reduce trigger-contact wear, a compatible basic MOSFET may meet your needs without advanced programming.

Choose an ETU for Electronic Trigger Control

Consider an ETU if you want supported trigger-sensitivity settings, cycle control or diagnostics. Compare the exact feature set with your budget and installation requirements.

Check Existing Electronics First

Your rifle may already have a suitable system. Identify it and review its functions before buying a replacement.

Can You Install Electronics Later?

Many AEGs accept aftermarket electronics, but compatibility varies. Gearbox version alone does not guarantee fit.

Before ordering, check:

• Exact rifle and gearbox model
• Trigger and selector compatibility
• Front or rear wiring layout
• Motor type and current requirements
• Battery and connector requirements
• Space for the board, wiring and connectors

Some installations require soldering or gearbox disassembly. Use an experienced airsoft technician if you are unfamiliar with the work.

Common Misconceptions

Does a MOSFET Increase FPS?

It is not a direct muzzle-velocity upgrade. Spring strength, compression, air delivery and barrel configuration determine output.

Are All ETUs the Same?

No. Features, sensors, firmware, programming methods and protection functions vary.

Is a MOSFET Unnecessary with a 7.4V Battery?

A correctly wired MOSFET can still reduce trigger-contact arcing. Whether an upgrade is worthwhile depends on the existing system and your goals.

Maintenance and Troubleshooting

Inspect wiring and connectors, keep the gearbox in good mechanical condition and follow the electronics manufacturer’s setup instructions.

• Stop using the rifle if it reports an error or behaves abnormally.
• Look up the exact diagnostic code before changing parts.
• Check motor compatibility before enabling braking features.
• Use only approved firmware and update procedures.
• Disconnect the battery before maintenance.

Frequently Asked Questions

Will an ETU Make My Rifle More Accurate?

It is not a direct accuracy upgrade. Hop-up setup, BB quality, barrel condition and consistent air delivery remain important.

Can I Install a MOSFET Myself?

It depends on the unit and your experience. Check the installation manual before buying and arrange technical help if needed.

Is an ETU Worth the Cost?

It may be if you will use its specific features. A simpler system may be sufficient when you only need reliable electrical switching.

Do I Need a New Motor Too?

Not automatically. Confirm that your current motor is compatible with the electronics and suitable for the complete build.
