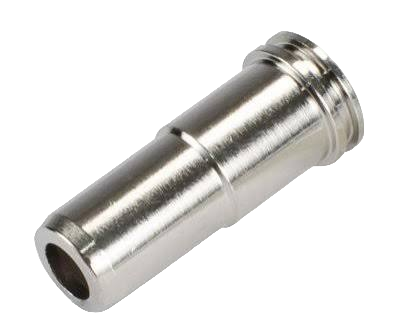

APS STEEL BORE-UP AIR NOZZLE FOR AK SERIES AIRSOFT AEG GEARBOXES

Steel Construction • Bore-Up Air System Component • APS AK Hybrid Gearbox Compatible • Replacement & Upgrade Internal Part

APS AK SERIES // BORE-UP AIR NOZZLE // STEEL CONSTRUCTION // HYBRID AEG GEARBOX // COMPRESSION SYSTEM COMPONENT

Build or maintain a properly matched bore-up compression system with the APS Steel Bore-Up Air Nozzle for AK Series Airsoft AEG Gearboxes, a specialized internal component designed specifically for compatible APS AK Series Hybrid AEG gearboxes.

The air nozzle is a small but critical part of an AEG’s compression and feeding system. It works with the cylinder head and hop-up chamber to help chamber each BB while directing compressed air through the hop-up and inner barrel. Correct nozzle dimensions, movement, and compatibility are therefore essential for dependable feeding and consistent air delivery.

This APS version is manufactured from steel and designed specifically as a bore-up component. Because bore-up systems use larger internal air passages to increase available air volume, this nozzle must be paired with other compatible bore-up compression components rather than treated as a universal standalone upgrade.

For APS AK owners and airsoft technicians building a matched bore-up system, this is a purpose-built component designed around the APS Hybrid gearbox platform.

01 // DESIGNED FOR APS AK HYBRID GEARBOXES

The APS Steel Bore-Up Air Nozzle is specifically listed for APS AK Series Airsoft Hybrid AEG Gearboxes.

Air nozzle length and internal dimensions can vary significantly between platforms and manufacturers, even when the rifles use similar gearbox architecture.

That’s why nozzle compatibility matters.

Using a nozzle designed for the specific gearbox and compression configuration helps maintain the correct relationship between the tappet system, cylinder head, hop-up chamber, and BB feeding path.

This product shouldn’t automatically be considered compatible with every AK or Version 3 gearbox.

02 // PART OF A BORE-UP COMPRESSION SYSTEM

This isn’t a conventional standard-volume air nozzle.

It’s designed specifically for a bore-up AEG compression system.

Bore-up components feature increased internal diameters intended to provide greater air volume through the compression assembly. This type of system is typically built using a matched group of compatible internal components.

That means the nozzle should be used with the appropriate bore-up cylinder head and other compatible bore-up compression parts.

Installing one bore-up component into an otherwise incompatible standard compression system may result in improper fitment or poor performance.

03 // DURABLE STEEL CONSTRUCTION

APS manufactures this air nozzle from steel.

The nozzle operates repeatedly every time the gearbox cycles, moving forward and backward as part of the AEG’s feeding sequence.

Steel provides a strong, rigid construction for players looking for a durable internal component in a compatible APS bore-up build.

As with any internal upgrade, durability depends on the complete gearbox being properly assembled, aligned, and maintained.

04 // CRITICAL TO THE AEG AIR SEAL

The air nozzle forms part of the AEG’s overall compression and air-seal system.

When the rifle cycles, compressed air moves from the cylinder through the cylinder head and nozzle before reaching the hop-up chamber and inner barrel.

Proper fitment between these components helps minimize unnecessary air loss.

A correctly matched nozzle can therefore contribute to a properly functioning compression system, while an incorrectly sized or incompatible nozzle may create air-seal or feeding problems.

For this reason, bore-up builds should be treated as complete systems rather than collections of unrelated upgrade parts.

05 // SUPPORTS PROPER BB FEEDING

The air nozzle doesn’t only transfer compressed air.

It also moves during the gearbox cycle to allow the next BB to enter the hop-up chamber.

The nozzle must retract sufficiently for the BB to feed and then move forward correctly as the gearbox completes its cycle.

Incorrect nozzle dimensions can potentially contribute to:

Feeding inconsistencies
Air-seal problems
Improper BB chambering
Inconsistent performance

Choosing the correct APS AK Hybrid bore-up nozzle helps keep the feeding and compression systems properly matched.

06 // IDEAL FOR REBUILDS & BORE-UP PROJECTS

This nozzle can serve as either a replacement component or part of a planned bore-up gearbox build.

If you’re servicing an existing APS AK that already uses a compatible bore-up compression system, the steel nozzle provides a replacement option for an appropriate worn or damaged original component.

For custom gearbox projects, it can be incorporated into a complete matched bore-up configuration.

Either way, compatibility with the rest of the compression assembly should be verified before installation.

WHY CHOOSE THE APS STEEL BORE-UP AIR NOZZLE?

✓ APS AK COMPATIBILITY

Designed specifically for compatible APS AK Series Hybrid AEG gearboxes.

✓ BORE-UP DESIGN

Engineered for use within a matched bore-up compression system.

✓ STEEL CONSTRUCTION

Strong, rigid internal component designed for repeated gearbox cycling.

✓ COMPRESSION SYSTEM COMPONENT

Transfers compressed air from the cylinder head toward the hop-up chamber.

✓ SUPPORTS BB CHAMBERING

Works as part of the gearbox’s feeding cycle.

✓ REPLACEMENT READY

Useful when servicing an existing compatible APS bore-up setup.

✓ TECHNICIAN FRIENDLY

Ideal for planned APS AK gearbox rebuilds and custom compression-system projects.

IMPORTANT // BORE-UP PARTS MUST BE MATCHED

Bore-up components aren’t intended to be mixed randomly with standard-volume compression parts.

Because bore-up systems use larger internal diameters, this nozzle should be paired with the correct compatible bore-up components required by the gearbox configuration.

Before installation, verify the compatibility of your:

Cylinder
Cylinder head
Air nozzle
Piston / piston head assembly
Hop-up interface

A properly matched compression system is far more important than installing a single upgraded component.

TECH NOTE // DIAGNOSE BEFORE REPLACING PARTS

If you’re replacing the nozzle because your AEG has feeding or consistency issues, inspect the rest of the system before assuming the nozzle is the only cause.

Check the tappet plate, tappet spring, hop-up chamber alignment, bucking, magazine feeding, cylinder head, and compression components.

Several different problems can produce similar symptoms, and correct diagnosis helps avoid unnecessary parts replacement.

If you’re unfamiliar with gearbox disassembly or bore-up system compatibility, professional airsoft technician installation is recommended.

FINAL WORD // PURPOSE-BUILT BORE-UP SUPPORT FOR APS AK GEARBOXES

The APS Steel Bore-Up Air Nozzle for AK Series Airsoft AEG Gearboxes is a specialized internal component for players and technicians working with compatible APS AK Hybrid gearbox bore-up systems.

Its combination of steel construction, APS AK-specific compatibility, bore-up internal dimensions, and critical feeding/compression functionality makes it an important component when repairing or assembling the correct compression setup.

For an APS AK bore-up project, the key is matching the complete air system—and this nozzle provides the purpose-built interface needed for the appropriate APS configuration.

APS // AK SERIES // STEEL AIR NOZZLE // BORE-UP SYSTEM // HYBRID AEG GEARBOX
