Maxx Model CNC Aluminum Hop-Up Chamber for M4 Airsoft AEG Rifles (Model: M4A PRO)

Maxx Model CNC Aluminum Hop-Up Chamber M4A PRO for Airsoft AEG Rifles

Take your rifle’s consistency and accuracy to a professional level with the Maxx Model CNC Aluminum Hop-Up Chamber M4A PRO — one of the most advanced and precisely machined hop-up units available for M4/M16 AEG platforms. Engineered from aircraft-grade aluminum and packed with features for stability, fine-tuning, and reliability, this hop-up chamber is built for serious players and techs who demand the best.

---

Precision Engineering for Superior Accuracy

CNC-machined from a solid block of 6061 aluminum, the Maxx M4A PRO hop-up chamber ensures exceptional durability and precision fitment. The tight manufacturing tolerances minimize air loss and barrel movement, giving you improved shot-to-shot consistency and tighter groupings at any engagement distance.

Its rotary dial adjustment system allows for fine, repeatable tuning of hop pressure — perfect for users who want pinpoint control over trajectory. Whether you’re running standard hop, flat-hop, or R-hop setups, this chamber ensures consistent backspin and improved range without sacrificing FPS or feeding reliability.

---

Advanced Compatibility and Air Seal Design

The M4A PRO is designed to fit most Tokyo Marui-spec M4/M16 AEGs, including G&G, KRYTAC, and other compatible brands (excluding KWA). It supports standard AEG inner barrels and accepts nozzle lengths from 21.00mm to 21.25mm, providing flexibility for different gearbox and barrel combinations.

To maximize air seal, the chamber includes a CNC Delrin Locking C-Clip that secures the inner barrel tightly in place — no twisting, no wobbling. Combined with three compression springs (top, bottom, and center), the hop-up unit stays perfectly aligned inside your receiver, ensuring optimal air pressure and accuracy with every shot.

The inlet adaptor (OD 11mm) and CNC brass spacers ensure the hop-up sits perfectly centered to your gearbox or HPA engine nozzle, maintaining a tight, airtight seal for consistent FPS performance.

---

Smart BB Retention System

One of the signature features of the M4A PRO is its BB Latching System, designed to prevent BBs from dropping when the magazine is removed. This is a simple yet highly effective innovation that prevents wasted ammunition and reduces the mess during reloads.

Need to clear the chamber manually? The latch arm can be pressed by hand to release remaining BBs quickly — a thoughtful touch for players who value both functionality and convenience.

---

Built for Customization and Performance

The hop-up lever and included soft, flat, and concave nubs are optimized for a wide range of hop-up setups. Whether you prefer a flat-hop for consistent mid-range accuracy or an R-hop for maximum long-range performance, the Maxx M4A PRO gives you precise tuning capability right out of the box.

It’s also compatible with most aftermarket buckings — both soft and hard rubber types — without causing FPS drops or feeding issues. This versatility makes it one of the most adaptable hop-up chambers for custom AEG builds.

---

Installation & Results

Users can expect an FPS increase of 10–30 FPS compared to stock hop-up chambers, depending on setup and compression fit. Professional installation is recommended for best results, especially when paired with upgraded barrels, buckings, or HPA systems.

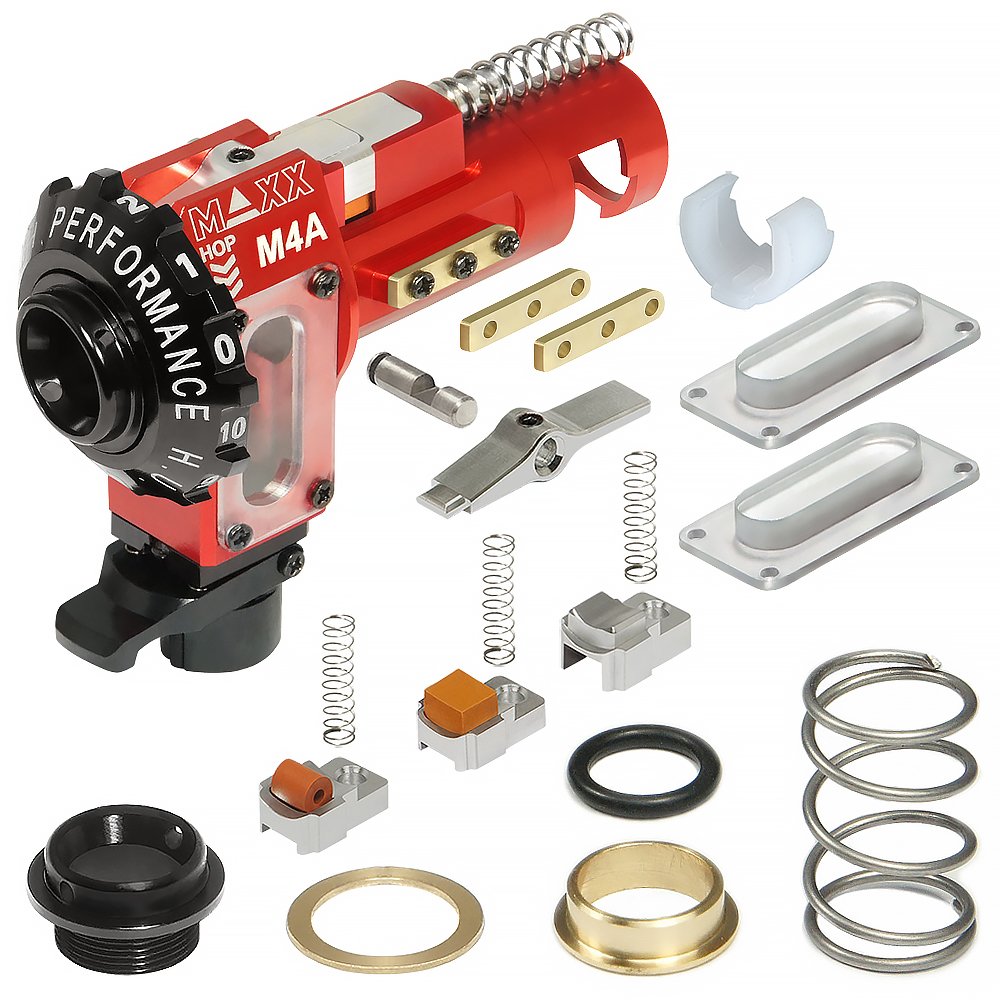

Each kit comes with everything you need for installation, including CNC-machined components such as brass side wings, rotary dial, springs, spacers, and locking clips, all precisely engineered for stability and performance.

---

Specifications

• Material: CNC 6061 Aluminum

• Length: 51.65mm

• Height: 37.75mm

• Inlet Adaptor OD: 11mm

• Hub OD: 12mm

• Compatible Platforms: TM Spec M4/M16 AEGs (incl. KRYTAC, G&G)

• Features: BB Latching System, Rotary Dial, C-Clip Locking Design

• Recommended Nozzle Length: 21.00–21.25mm

• Expected FPS Increase: +10 to +30 FPS

---

Why Choose the Maxx M4A PRO

• Precision CNC aluminum construction for superior durability

• Rotary dial for precise hop adjustments

• BB latching system prevents ammo loss

• Enhanced air seal for higher consistency and FPS

• Compatible with most AEG and HPA platforms

• Perfect for R-hop, flat-hop, and standard setups

---

About Maxx Model

Founded in Canada in 2001 (originally as MicroHeli), Maxx Model Products built its reputation in the RC and drone industries for producing high-precision CNC components. In 2016, Maxx applied its expertise to the Airsoft world — pioneering top-tier hop-up chambers like the M4 PRO series. Today, Maxx continues to push the boundaries of performance, innovation, and machining excellence, offering Airsoft players worldwide the most advanced upgrade parts on the market.
