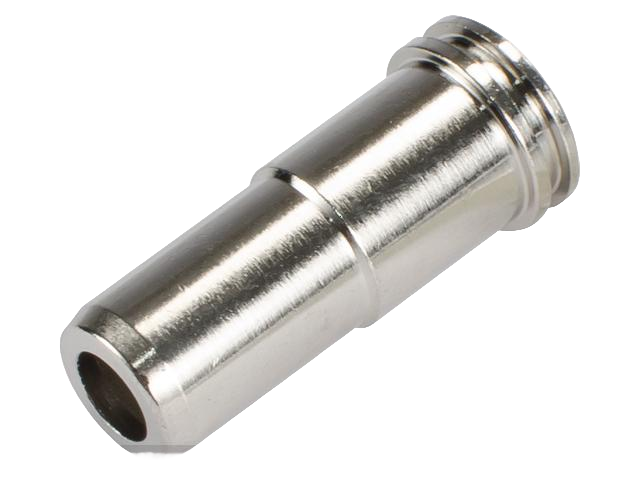

APS AIR SEAL NOZZLE FOR M4 / M16 SERIES AIRSOFT AEG RIFLES

Aluminum Construction • Air-Seal Focused Design • APS Hybrid Gearbox Component • M4 / M16 AEG Compatibility • Factory-Direct Replacement

APS // M4 / M16 // AIR SEAL NOZZLE // ALUMINUM CONSTRUCTION // AEG COMPRESSION SYSTEM // HYBRID GEARBOX

Restore or refine your AEG compression system with the APS Air Seal Nozzle for M4 / M16 Series Airsoft AEG Rifles, a factory-direct replacement component originating from the APS Hybrid Gearbox platform.

Designed for compatibility with APS, Tokyo Marui, Matrix, G&P, and other compatible M4 / M16 Series Airsoft AEG gearboxes, this aluminum air nozzle is an important component within the rifle’s feeding and compression system. During every gearbox cycle, the nozzle helps chamber the next BB while directing compressed air from the cylinder assembly into the hop-up chamber and inner barrel.

Because nozzle dimensions, alignment, and air seal can directly influence an AEG’s consistency and feeding behaviour, selecting a properly matched component is important when repairing or rebuilding an M4/M16 gearbox.

Manufactured from aluminum, the APS Air Seal Nozzle provides a rigid, lightweight replacement solution for technicians and players maintaining compatible AEG platforms.

01 // FACTORY-DIRECT APS COMPONENT

This air nozzle comes directly from the APS Hybrid Gearbox system, making it an excellent choice for players repairing or maintaining compatible APS M4 and M16 AEGs.

Factory-direct components can be particularly useful when restoring an AEG because they remove much of the uncertainty associated with selecting generic internal parts.

Instead of adapting an unrelated nozzle, this APS component provides a replacement based around the company’s established Hybrid Gearbox configuration.

It can also be compatible with several other common M4/M16 AEG platforms where the nozzle dimensions and gearbox configuration match.

02 // AIR-SEAL FOCUSED DESIGN

The nozzle is an important part of an AEG’s pneumatic compression system.

When the gearbox cycles, compressed air travels from the cylinder through the cylinder head, into the nozzle, and toward the hop-up chamber and inner barrel.

A properly matched nozzle helps create the connection between these components.

Poor fitment, incorrect dimensions, or damaged sealing surfaces can contribute to unwanted air loss and inconsistent operation.

The APS Air Seal Nozzle is designed to provide the appropriate interface within compatible M4/M16 gearbox systems, making it useful for both repairs and planned compression-system rebuilds.

03 // ALUMINUM CONSTRUCTION

APS manufactures this air nozzle from aluminum.

Aluminum offers an excellent combination of rigidity, low weight, dimensional stability, and durability, making it a popular material for precision AEG compression components.

The nozzle repeatedly moves forward and backward during normal gearbox operation, so maintaining correct dimensions and a smooth external surface is important.

A properly installed aluminum nozzle provides a solid replacement for compatible factory or aftermarket configurations.

04 // M4 & M16 AEG COMPATIBILITY

The APS Air Seal Nozzle is designed for compatible M4 and M16 Series Airsoft AEG gearboxes.

Listed compatible platforms include:

APS
Tokyo Marui
Matrix
G&P
Other compatible M4 / M16 AEG gearboxes

This gives the nozzle useful compatibility potential across one of airsoft’s most popular platform families.

However, not every M4-style AEG uses identical internal dimensions. Always verify nozzle length and gearbox compatibility before installation, particularly when working with proprietary or heavily modified platforms.

05 // SUPPORTS PROPER BB CHAMBERING

The air nozzle has two important jobs: air delivery and BB chambering.

During the gearbox cycle, the tappet system retracts the nozzle so a BB can enter the hop-up chamber. The nozzle then moves forward to correctly position the BB and establish the air path before the shot is completed.

This movement needs to happen consistently.

An incorrect or damaged nozzle can potentially contribute to feeding issues, inconsistent chambering, or compression problems.

That’s why this seemingly small component can have a noticeable impact on the overall operation of an AEG.

06 // IDEAL FOR COMPRESSION SYSTEM REBUILDS

If you’re rebuilding the compression system in a compatible M4 or M16 AEG, the nozzle should be inspected alongside the other pneumatic components.

A complete compression inspection may include the:

Cylinder
Cylinder head
Piston head
Piston O-ring
Air nozzle
Hop-up bucking interface

Replacing a worn or unsuitable nozzle as part of a properly matched compression rebuild can help restore the system’s intended operation.

The APS aluminum nozzle provides a practical option for compatible builds where an air-seal style M4/M16 nozzle is required.

07 // REPAIR WITHOUT REPLACING THE COMPLETE GEARBOX

A feeding or compression issue doesn’t necessarily mean the complete gearbox needs replacement.

Individual internal components can wear or become damaged over time.

The APS Air Seal Nozzle allows technicians to replace the affected component while retaining the rest of a serviceable gearbox.

For airsoft repair shops and players who maintain their own AEGs, keeping common M4/M16 compression components available can make diagnosing and completing repairs considerably easier.

WHY CHOOSE THE APS AIR SEAL NOZZLE?

✓ FACTORY-DIRECT APS COMPONENT

Based on the nozzle used in the APS Hybrid Gearbox system.

✓ AIR-SEAL DESIGN

Designed as part of the AEG’s pneumatic compression pathway.

✓ ALUMINUM CONSTRUCTION

Lightweight, rigid, and durable internal component.

✓ M4 / M16 COMPATIBILITY

Designed for compatible M4 and M16 Series Airsoft AEG gearboxes.

✓ MULTI-BRAND APPLICATION

Listed for APS, Tokyo Marui, Matrix, G&P, and other compatible platforms.

✓ SUPPORTS BB FEEDING

Works with the gearbox’s tappet system to help chamber each BB.

✓ IDEAL REPLACEMENT PART

Useful for gearbox repairs, compression rebuilds, and technician inventories.

COMPATIBILITY NOTE // VERIFY BEFORE INSTALLATION

Although this nozzle is listed for several common M4 / M16 Airsoft AEG platforms, compatibility should always be confirmed before installation.

Air nozzle length and internal geometry can differ between manufacturers, production generations, hop-up chambers, and gearbox configurations.

Compare the replacement nozzle with your original component and confirm that the complete feeding and compression system is correctly matched.

TECH NOTE // CHECK THE COMPLETE AIR-SEAL SYSTEM

If you’re replacing the nozzle to correct inconsistent performance, don’t overlook the rest of the compression system.

Inspect the cylinder head seal, piston head O-ring, nozzle-to-cylinder-head fit, tappet plate movement, hop-up bucking, and hop-up chamber alignment.

Several different issues can create similar symptoms.

Correctly diagnosing the system before replacing components can save time and help produce a more dependable repair.

Professional airsoft technician installation is recommended if you’re unfamiliar with gearbox disassembly and compression-system testing.

FINAL WORD // A SOLID AIR-SEAL COMPONENT FOR M4 & M16 AEG BUILDS

The APS Air Seal Nozzle for M4 / M16 Series Airsoft AEG Rifles is a small but important component for maintaining a properly functioning feeding and compression system.

With its aluminum construction, APS Hybrid Gearbox origins, air-seal focused design, and compatibility with appropriate APS, Tokyo Marui, Matrix, G&P, and similar M4/M16 AEG gearboxes, it’s an excellent choice for repairs, maintenance, and planned gearbox rebuilds.

Whether you’re restoring an APS rifle or servicing another compatible M4/M16 platform, using the correct air nozzle helps keep the gearbox, hop-up, and compression system working together as intended.

APS // M4 / M16 // AIR SEAL NOZZLE // ALUMINUM // HYBRID GEARBOX // AEG COMPRESSION COMPONENT
